Non-isolated safety protection system product introduction
Non-isolated safety protection system (industrial safety mat) is used to detect people standing or stepping into a specific area. In industrial applications, it is a safety protection device for automation equipment that meets the highest safety protection requirements. The non-isolated safety protection system can detect whether there are people in the paving area within the specified time and prevent the movement of the machine from causing personal injury and danger.
Provide necessary safety protection for personnel working in hazardous areas.
Pressure-sensitive floor mats protect the periphery of the welding robot, the periphery of the manipulator, and the periphery of the equipment
Features: 1. Any rectangular size can be assembled
2. Have CE certification
3. Use in combination with safety mat controller
Product introduction:
Sensing safety carpet | PSM4 |
Adaptive detection range | Detect the presence of operators and items |
Recommended occasions | It is applicable to the safety protection of mixed areas of people and small vehicles |
Service environment requirements | It is suitable for indoor and outdoor use, and the ambienttemperature range is - 10 degree - plus 60 degree |
Safety carpet thickness | 14 millimeter |
Surface protective material | NBRrubber |
Surface pattern and color | pattern anti-skid surface (black, yellow, red) |
Edge bandingform | Aluminurwdgesealing |
Applicable industry | Light and heavy industrial occasions such as paper industry, electronic industry, automobilewelding production line, forging production line, general industrial application and automatic palletizer |
Ordering instructions | Provide installation size, safety protection size and color |
Model specification
PSM4-XXXYYY-Z
1.XXX: length dimension (unit: mm)
2.YYY: width dimension (unit: mm)
3.Z: color
B: black（Standard color）.R: Red. Y: Yellow.
Size description:
Size selection:
The following sizes are regular sizes, other sizes can be customized or spliced, please consult customer service for details
Product Size（mm） | type of output | Entry cable |
| 300300 | NO | 4-core wire |
| 400400 | NO | 4-core wire |
| 500250 | NO | 4-core wire |
| 600400 | NO | 4-core wire |
| 750250 | NO | 4-core wire |
| 750500 | NO | 4-core wire |
| 750750 | NO | 4-core wire |
| 1000500 | NO | 4-core wire |
| 1000750 | NO | 4-core wire |
| 10001000 | NO | 4-core wire |
| 1500500 | NO | 4-core wire |
| 1500750 | NO | 4-core wire |
| 15001000 | NO | 4-core wire |
Technical parameters of safety mats:
Tsize | It can be specially made according to requirements, with length of 200mm-1000mm and width of 200mm-3000mm |
Underpressure | Dynamic 500kg, solid 700kg |
Surface material | Rubber(red / yellow / Black optional) |
Control level | Shared with controller to reach level 3 |
Degreeof protection | IP65 |
Ambient temperature | -10 degree to 60 degree |
Thickness | 14mm |
Trigger force | Adult 30kg |
Cable length | 3Mand 5moptional |
Response time | Less than 30ms |
Weight | About30kg/ sq.m |
Chemical resistance | Generally |
Material ability | Generally |
Service life | A million times |
Waterproof | Generally |
Anti mineral acid | Generally |
Anti organic acid | Generally |
Anti alcohol | Generally |
Anti ethanol | Generally |
Corrosion protection | Generally |
Anti petroleumsolvent | Generally |
Anti bio oil solvent | Generally |
Type of output | No(normally open) |
Maximum voltage | DC24V |
Safety controller parameters:
| Model | Tner-A31 |
Power supply | DC24V |
Voltage tolerance | plus 10 percent /-20 percent |
Power waste | 2.9W |
Output | |
Relay safety output | 3N0 plus 1NC |
Transistor signal output | < 500ma=""> |
Relay contact capacity | |
AC-1 | 6A/250VAC/1500VA |
AC-15 | 4A/240VAC |
DC-1 | 6A/24VDC/150W |
DC-13 | 4A/24VDC |
Maximum switching capacity | 12A (distributed on all safety output contacts) |
Contact resistance | <> |
Minimum load | 10mA/5V |
Contact material | AgSn02 plus 0.2pmAu |
For more parameters, please download the safety control manual

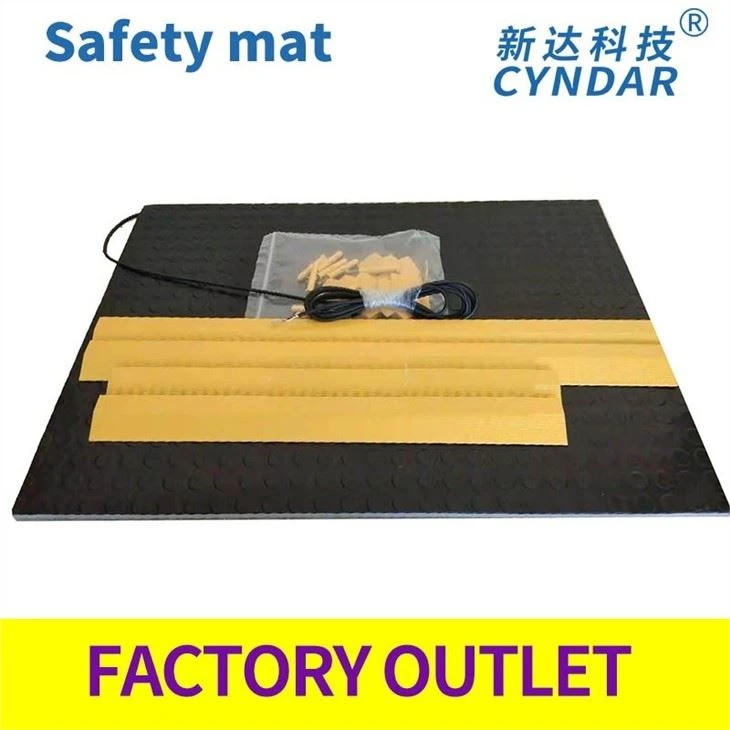

Product Image
 |  |  |
FAQ
1. What is the material of this safety carpet?
There are rubber and PVC, the standard is rubber material, and the special custom is PVC.
2. What circumstances apply?
Suitable for indoor use, the ambient temperature range is -10 degree - plus 60 degree
3. What is the voltage used?
Working voltage is DC24V
4. What output
Normally open contact output, note: it cannot be directly connected to the power supply, it must be connected to a safety relay to protect the relay
